SR230A

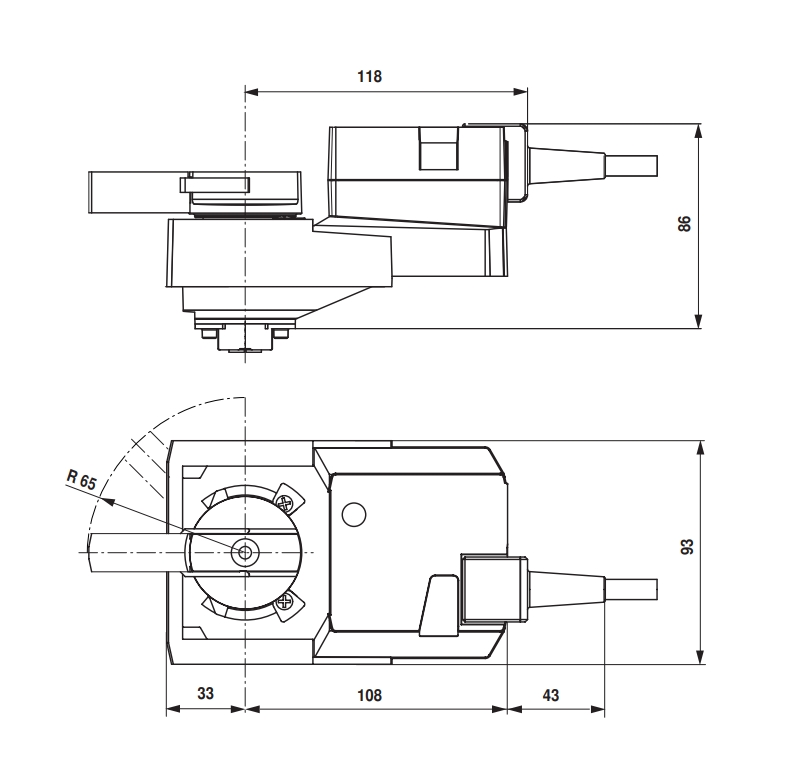

SR230A dimensions

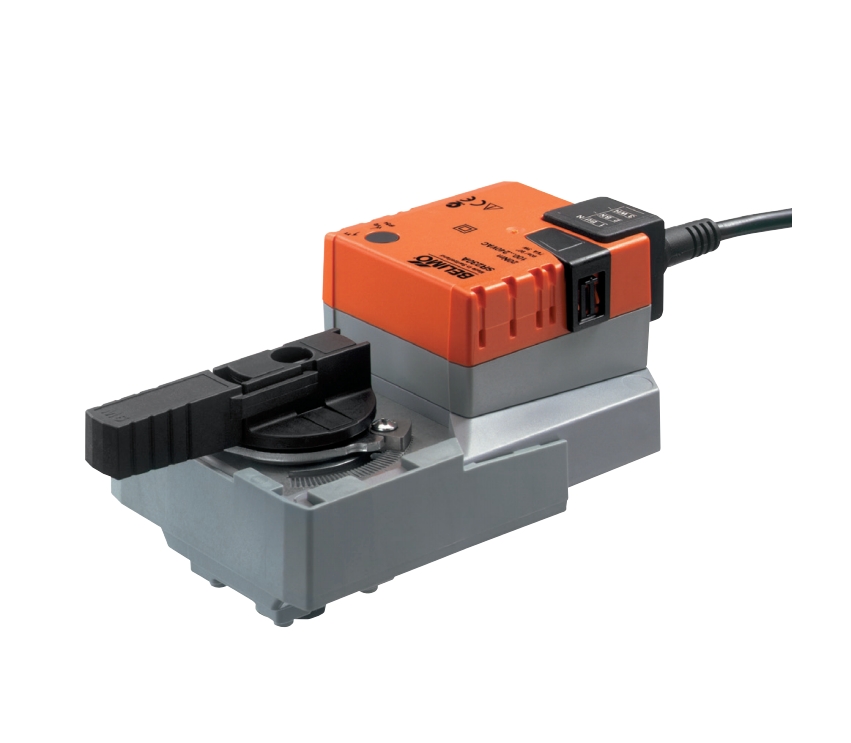

Rotary actuator SR230A

331.20 лв. inc.Vat

SKU: SR230A Categories: ,

Product Description



Nominal voltage: AC 230 V
Power consumption in operation: 3 W
Connection supply / control Cable: 1 m, 3 x 0.75 mm²
Nominal torque: Min. 20 Nm
Control: Open-close, 3-point
Manual override: with push-button, can be locked
Running time motor: 90 s / 90°
Sound power level motor: 45 dB(A)
Position indication: Mechanically, pluggable
Degree of protection IEC/EN: IP54
Weight: 1.9 kg



Suitable for ball valves up to 2″.





Technical data sheet. 309kB





Installation instructions. 626kB
